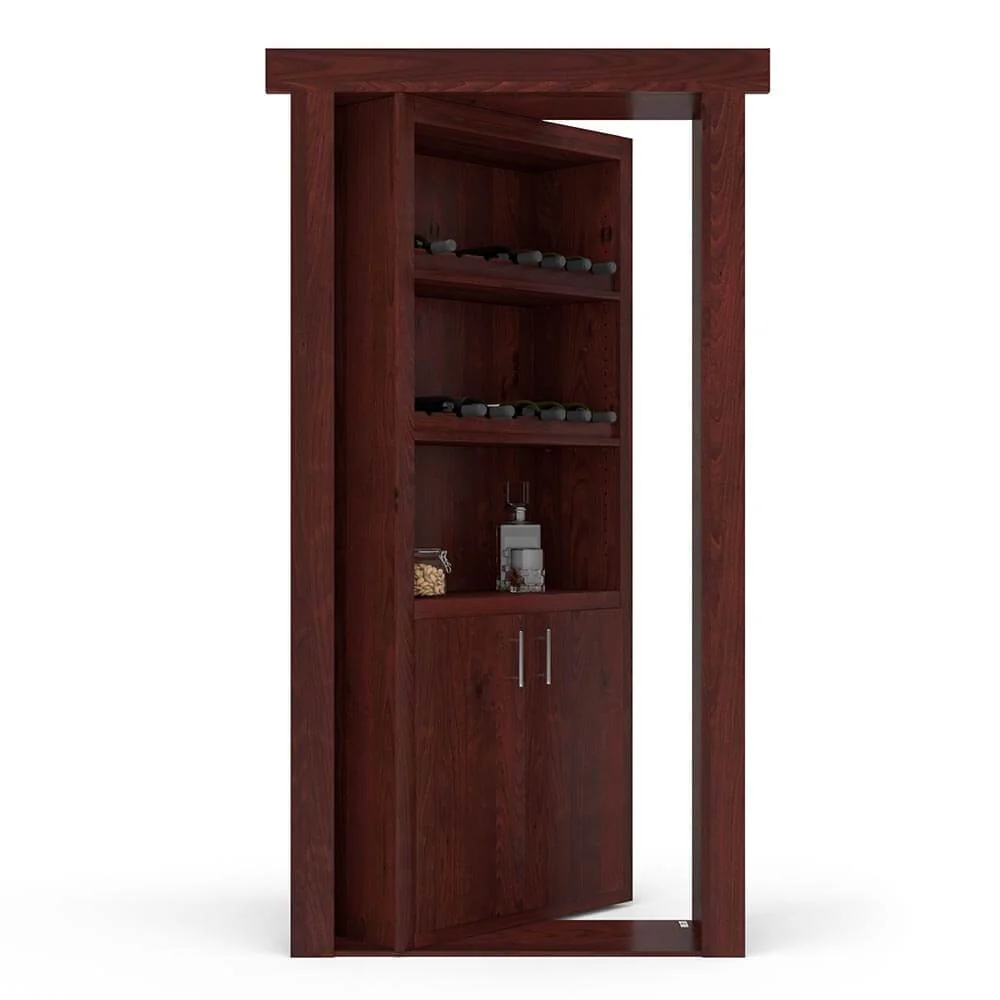

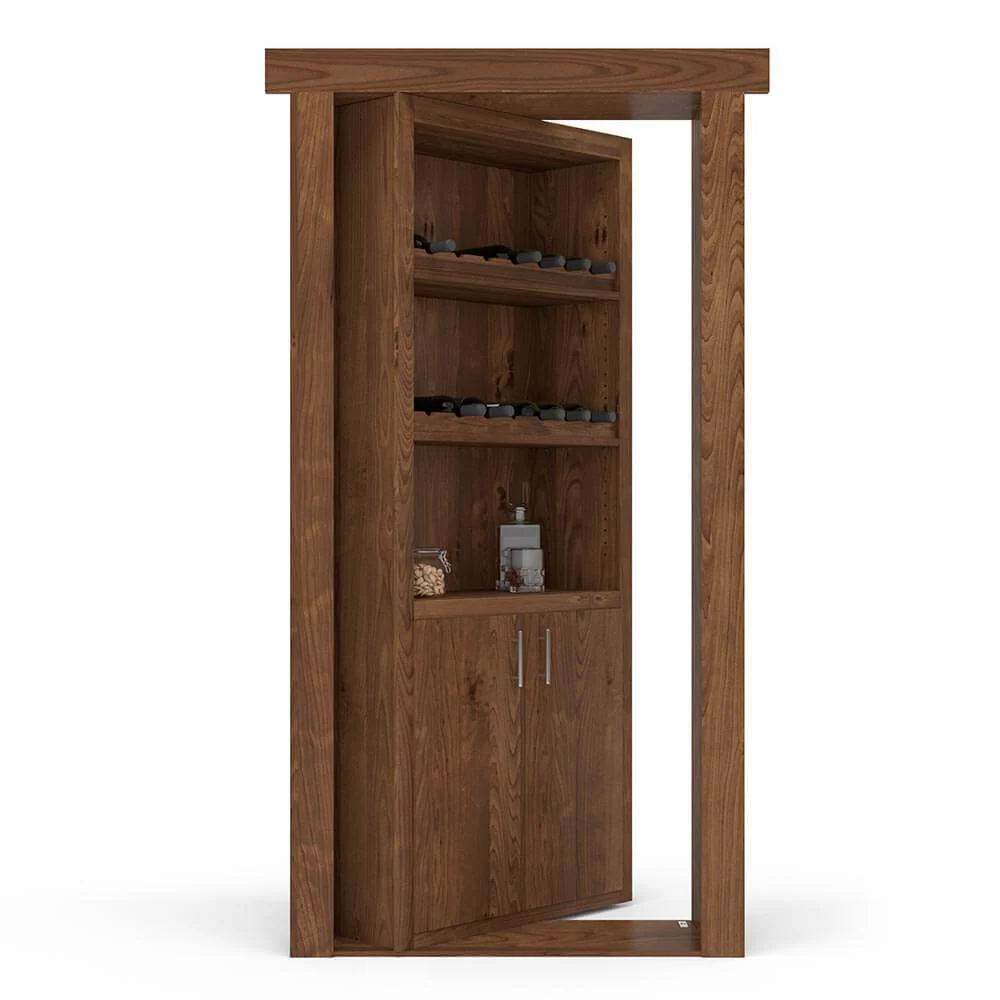

The Wine Rack door system from Murphy Door allows you to utilize any existing doorway and convert it into a beautiful wine storage solution. This is the perfect entryway for a hidden wine cellar!

Constructed with an MDF Core and Knotty Alder Veneer, our flush mount Wine Rack Door arrives pre-assembled and installs like a regular door!

INCLUDES

• 2 Adjustable wine rack shelves, each holds 5-7 bottles depending on door width
• 1 Adjustable standard shelf
• 1 Standard fixed shelf
• 2 Slab cabinet doors (2) stainless steel pulls

All of our flush mount hidden doors will lose pass through space and protrude into the room behind.

IN-SWING DOORS

In-swing doors lose less pass through space, but require wall clearance to fully open.

Door Depth	Pass Through	Wall Clearance	Protrusion*
6-1/2" 8-1/4" 10" 12"	- 6" - 6" - 6" - 6"	NA 1-1/2" 3-1/2" 5-1/2"	2" 3-3/4" 5-1/2" 7-1/2"

*Door protrusion is based on a 4-9/16" door jamb.

OUT-SWING DOORS

Out-swing doors lose more pass through space, but will not require wall clearance to fully open.

Door Depth	Pass Through	Protrusion*
5-1/4" 8-1/4" 10" 12"	- 8-1/4" - 11-1/4" - 13" - 15"	3/4" 3-3/4" 5-1/2" 7-1/2"

*Door protrusion is based on a 4-9/16" door jamb.
